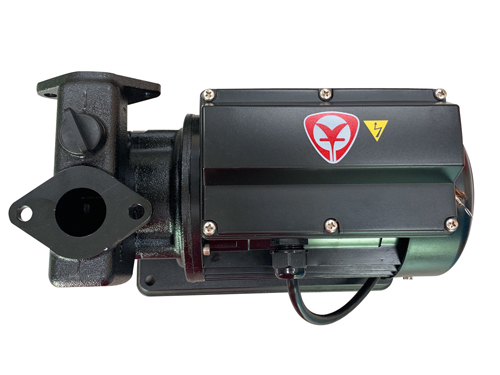

Booster Pump 1 HP
Product Number:A-174-3

What is RO Booster Pump

The purpose of the reverse osmosis booster pump is to increase water pressure going into the RO unit.

Reverse osmosis is a pressure-driven process. Small residential RO units will theoretically operate on very low pressure--down to 35 psi, according to different membrane makers--but the reality is, you won't get a lot of water and the product water quality will be poor if the unit runs below 45 psi. Low inlet pressure makes the unit produce more reject water, produce less drinking water, fill the storage tank more slowly, and produce lower quality water.

RO units run well on typical city water pressure of 60 psi, but they run even better with a small pump to boost the pressure to 80 psi or higher.

Who Need a Booster Pump

Most city water reverse osmosis users have enough city water pressure to run their RO unit nicely and they do not need a booster pump. For example, if your city water pressure is 60 psi or more, there is little to be gained by adding a booster pump. If your pressure is 50 psi or less, however, a pressure boost pump will give your RO unit work better. You'll have more water, at a higher pressure, in the storage tank, and the tank will fill faster. The increased pressure will also improve the economy of the unit (it will run less reject water to drain) as well as the quality of the water. RO units drive well on plenty pressure.

Model No. A-174-3
Description Booster Pump 1 HP
Standard 110V / 220V / 60HZ

Specification Every Series RO Booster Pumps are the most widely used pumps for RO system. They are ideal for high pressure / low flow applications with low amp draw. They can be mounted in any position, are compact, and are designed for long trouble-free life. Available in a variety of motor voltages and configurations. These RO Booster Systems are ideal for household use. Equipped with a high-quality, continuous duty pump that provides a constant flow of feed water to the membrane, yet maintains quiet operation. Available in a variety of motor voltages and configurations.
AQUA-WIN is a distributor for many kinds of famous Brand, such as JEAK PUMP, HEADON PUMP, KEMFLO PUMP..., and do on.

110V / 220V / 60HZ
