5 Stage Standard RO
Product Number:HY-3032
Model No. A-101-4

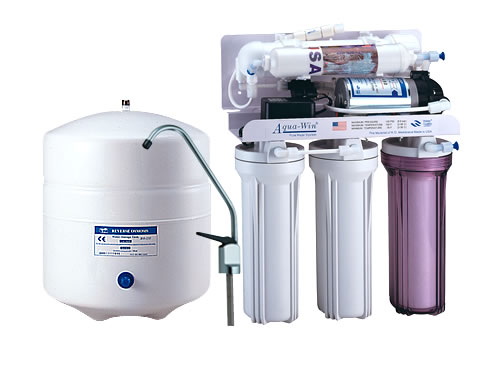

Description Typical 5-Stage RO System 50GPD ( With Pump )
Specification
HY-3032 detects water level automatically and the automatic power down system will be kicked off when insufficient water occurred.
Booster Pump x 1
Pump Transformer x 1
High Pressure Switches x 1
Low Pressure Switches x 1
10" white housing x 2
10" Transparent housing x 1
Bracket x 1
RO membrane housing x 1
CL-10 In Line coconut shell Carbon Filter x 1
5 micron 10" spun sediment filter x 1
1 micron 10" spun sediment filter x 1
10" Activated carbon filter x 1
HY RO Membrane 50g x 1
Prevent backflow valve x 1
Automatic shut-off valves x 1
Goose Faucets x 1
Spanner wrenches x 1
NSF Standard Storage tank(3.2g) x 1 (Plastic tank 2.2g or 4g is optinal)
Tank valve x 1
1/4 inch Color Tubing for System Connection for 6M
Flow Restrictor(400ml) x 1
Single Clip x 2
Double Clip x 2
Faucet Adapter x 1
Drain Clamp x 1
Brass Ball Valve x 1
* The parts in the (  ) is the optional item, not included or used in the unit, but you could choose to use or replace the original item with the one in (  ).

MODEL # A-101-4
1st Stage --- 10” PP
2nd Stage ---10”UDF
3rd Stage --- 10” CTO
4th Stage --- KINGPRO 50G Membrane
5th Stage --- Post in-line Carbon
3.2G NSF Standard Storage tank
With pump
50/80/100GPD is optional
