5-Stage Compact RO System (Under-Counter)
Product Number:HY-5099U

All-In-One R.O. System

A compact system enables to efficiently produce high quality pure water with combination of reverse osmosis (R.O.) technology, quick-change filters and storage tank (2.0G). Features of easy installation, maintenance and small size in compact systems fit your purified water needs for Home-Use and small location.

Quick-Change Cartridge Filter

Our exclusive twist and quick-change cartridge make replacement fast, easy and clean without tools required. The quick-change cartridges can be easily changed in seconds with just a quarter turn.

Automatic shut-off design makes installation safer and easier during cartridge replacement. Users can directly twist out the used and twist in the replacement without shutting the water resource. Also, the unique cartridge head can automatically avoid leaking problem in use.



Compact RO System Manufacturer

Model No. A-225-13
Description HY5099U 5-Stage Compact RO System (Under-Counter)
Specification
RO membrane housing x 1
King-Pro 50G RO Membrane x 1
Booster Pump x 1
Pump Transformer x 1
Solenoid Vaive(1/4") x 1
Prevent backflow valve / Check Valve x 1
Flow Restrictor(400ml) x 1
Ceramics Faucet (Silver) x 1
Steel Storage tank (2.0g) x 1 - Assembled inside the Case
High Pressure Switches x 1
Low Pressure Switches x 1
Faucet Adapter x 1
Drain Clamp x 1
Brass Ball Valve x 1
Bracket X 1
Single Clip X 2
* The parts in the (  ) is the optional item, not included or used in the unit, but you could choose to use or replace the original item with the one in (  ).
Features
●Can be placed on Counter-Top or Under-Counter
●When placed on the countertop, it can act just like a water dispenser! (No HOT or COLD feature) Just push down the button, as the picture shown.

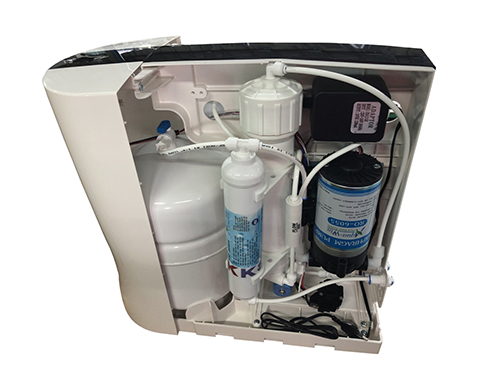

●Elegantly designed for convenient portability! Everything you need is inside of this case!     P.S: Also easy for cleaning!
●NO MORE SPANNER WRENCH!! Easy filter replacements!!
●Quick-Connect fitting for easy installation
●Space saving? Yes! The HY-5099 combines the RO system and its tank! Also, bugs can't get in!

MODEL # A-225-13

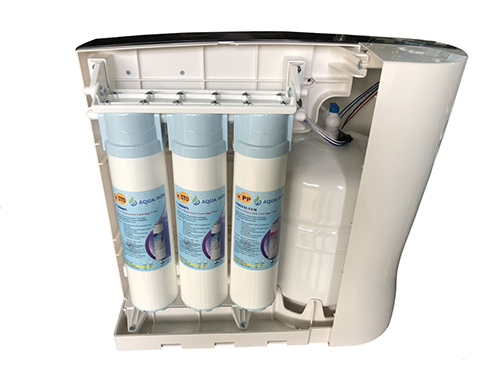

1st Stage --- Twist in EZ Change Pre-filter (B-217-13 )
2nd Stage --- Twist in EZ Change Carbon Filter ( B-217-15 )
3rd Stage --- Twist in EZ Change Carbon Filter ( B-217-15 )
4th Stage --- King-Pro 50G RO membrane
5th Stage --- Post in-line Cabon
MODEL # A-225-15
5-Stage Compact RO System (Under-Counter)(NO PUMP)
