5 Stage Raised Up Type CE Standard RO
Product Number:HY-8030

ro water system

Model No. A-226-2

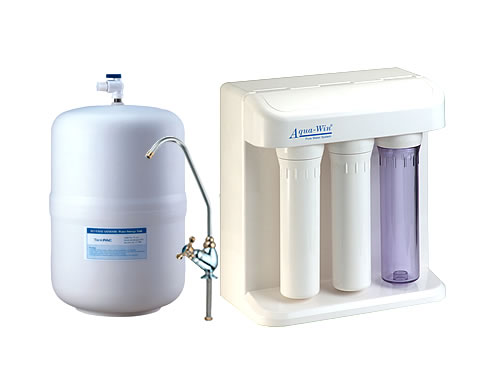

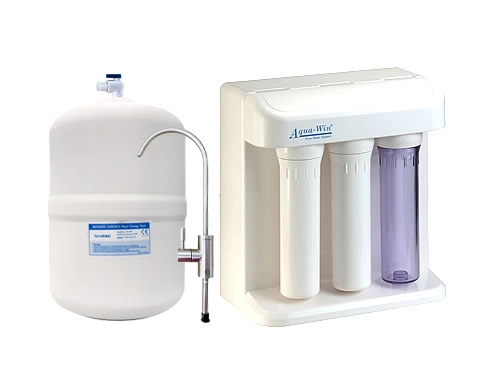

Description Modern Type 5-Stage RO System 50GPD ( No Pump ) ( Counter-top & under-counter RO system )
Specification

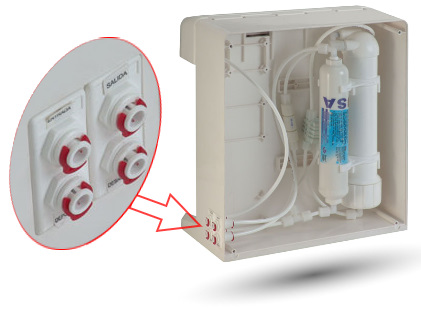

It can be raised up to height of 90° when replacing the inside cartridge filters.
It is quick and easy for installation
Candle Type Transparent Housing (Model: C-128-11) x 1
Candle Type White Housing (Model: C-128-12) x 2
Candle Type Hosing Reference Resources:
http://www.aquawin.com.tw/category/candle-type-housing.htm
B-314-26 Insert Type Sediment PP Filter x 1 ( the 1st stage )
B-314-28 or B-314-29 Insert Type Block Carbon Filter x 1 ( the 2nd stage )
B-314-28 or B-314-29 Insert Type Block Carbon Filter x 1 ( the 3nd stage )
Filter Cartridges Reference Resources:
http://www.aquawin.com.tw/category/insert-type-filter.htm
Plastic Bracket x 1
CL-10 In Line coconut shell Carbon Filter x 1
Single Clip x 2
Double Clip x 2
RO membrane housing x 1
AQUA-WIN RO Membrane 50g x 1
Automatic shut-off valves x 1
Prevent backflow valve / Check Valve x 1
Flow Restrictor(400ml) x 1
C-241 Ceramics Faucets ( Gold Color Head ) or C-241-7 Ceramics Faucets ( Silver Color Head ) x 1 Reference:
http://www.aquawin.com.tw/category/faucets-for-ro-system.htm
NSF Standard Storage tank(2.2g) x 1 (Plastic tank 3.2g or 4g is optional)
Faucet Adapter x 1
Drain Clamp x 1
Brass Ball Valve x 1
* The parts in the (  ) is the optional item, not included or used in the unit, but you could choose to use or replace the original item with the one in (  ).

MODEL # A-226-2
1st Stage --- Insert Type Sediment PP Filter
2nd Stage---Insert Type Block Carbon Filter
3rd Stage ---Insert Type Block Carbon Filter
4th Stage --- KINGPRO 50G Membrane
5th Stage --- Post in-line Carbon
2.2G NSF Plastic Standard Storage tank
Without pump
50/80/100GPD is optional
