2G UV Water Sterilizer ( 110V )
Product Number:A-140

UVC Lighting

Model No. A-140 (For 110V)
Description 2G UV Water Sterilizer ( 110V )
Specification
1. Flow rate: Clean water: 1.5 Gpm/6.0Lpm, D1, R.O.water:2.0Gpm/8.0Lpm
2. Voltage: 100~120V,220~240V, 50/60 Hz
3. UV germicidal lamp: 14W x 1 (Model:UVC-D287T5)
4. Ballast: 14W x 1(Option:Traditional or Electronic type)

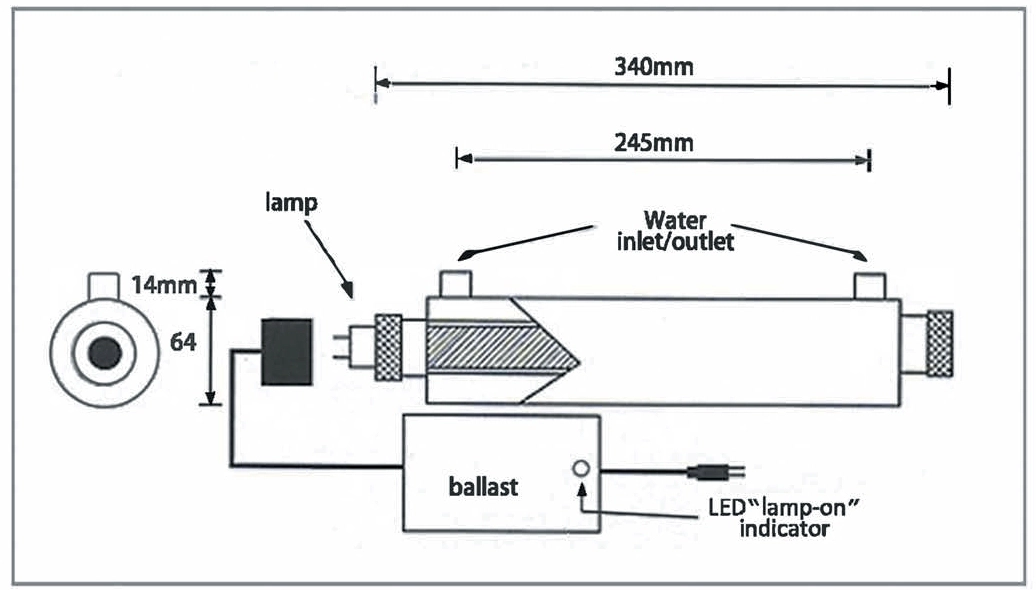

5. Dimension: 64 x 340mm
6. Inlet / outlet size: 1/4 inch NPT
7. Max. working pressure: 125 PSI
8. Chamber/housing: 304 stainless steel
9. Quartz sleeve: Model No. SQ230330
10. Lamp failure warning system: LED + Alarm (option)
11. Lamp average life: 9,000hrs

Ballast: 14W
Inlet / outlet size: 1/4 inch NPT
