  • 10" Filter Big White Housing
10" Filter Big White Housing
10" Filter Big White Housing
C-132-9
Model No. C-132-9

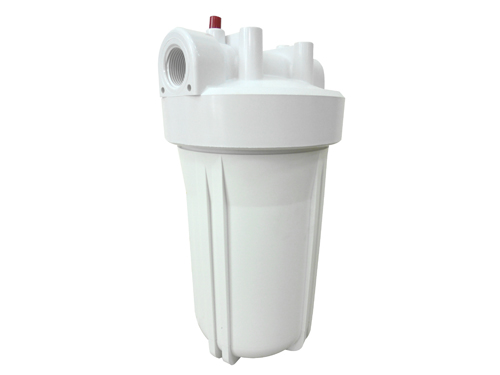

Description 10" Filter Big White Housing
Size (L)357mm / (W)185mm In-Out Size: 1"
Specification 10" Filter 1050 Housings:
Description: Plastic, CS, and SS Cartridge Housings for all sizes and flow rates. String wound, pleated, pp and carbon cartridges.
Big Blue Body with a Black Lid
Material: Polypropylene
Regulation:
1.The Highest endurable pressure: 10"~100 psi (7 kg/cm2), 20"~90 psi (6.3 kg/cm2)
2. The Highest endurable temp.: 120oF (50oC)
3. The Highest flow capacity: 40 G.P.M.

(L)357mm / (W)185mm
In-Out Size: 1"
