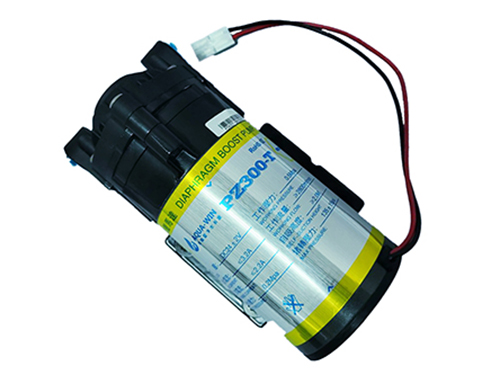

Aqua-Win High Flow Booster Pump PZ300-T (24VDC/2.8LPM)
Aqua-Win High Flow Booster Pump PZ300-T (24VDC/2.8LPM)
C-151-3

Direct flow pump is ideally use in wide range of reverse osmosis system. Direct flow pumps have good and stable performance in high flow RO systems. Direct flow pump can be used in commercial, agricultural or industrial applications where high flow rates are required.

Model No. C-151-3
Description Aqua-Win High Flow Booster Pump PZ300-T (24VDC/2.8LPM)
Standard

Volts: DC24±2V
Max Current: ≤3.2A
Working Current: ≤2.2A
Inlet Pressure: 0.2Mpa
Working Pressure: 0.5Mpa
Working Flow: ≥2800ml/min
Self-Suction Height: ≥ 2.0M
Max Pressure: 135±15psi

Pump for RO systems with water production of approximately 500 to 600 gallons per day.
It provides sufficient water to reverse osmosis filtration system to achieve good and stable performance.

The pump uses an advanced diaphragm design, which can exert a self-priming effect.
It can be applied to the end of pipelines or to residential buildings with high pressure.

Volts: DC24±2V
Self-Suction Height: ≥2800ml/min
Max Pressure: 135±15psi
