  • Pressure Reducing Valve (40PSI)
  • Pressure Reducing Valve (40PSI)
  • Pressure Reducing Valve (40PSI)
  • Pressure Reducing Valve (40PSI)
Pressure Reducing Valve (40PSI) Pressure Reducing Valve (40PSI) Pressure Reducing Valve (40PSI) Pressure Reducing Valve (40PSI)

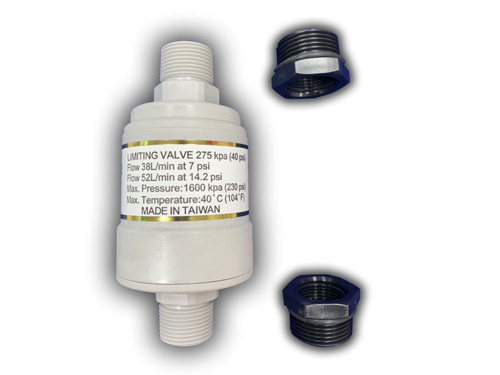

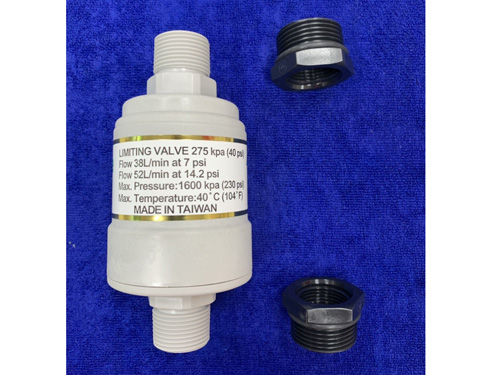

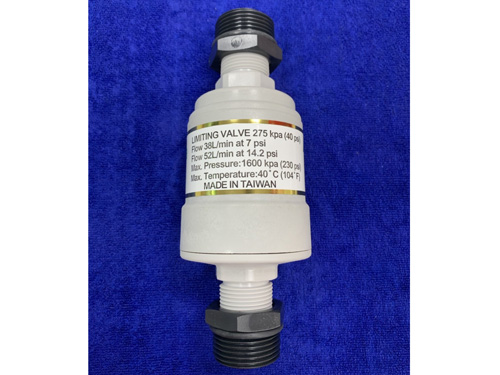

Pressure Reducing Valve (40PSI)
C-291-21

Model No. C-291-21
Description Pressure Limiting Filter Protection Valve 3/4"&1"NPT(40PSI)
Standard In-Out Size: 3/4" NPT
Flow Rate: 38L/min at 7PSI
Flow Rate:52L/min at 14.2PSI
Max Inlet Pressure: 1600kpa (230 PSI)
Max Temp.: 40°C (104℉)

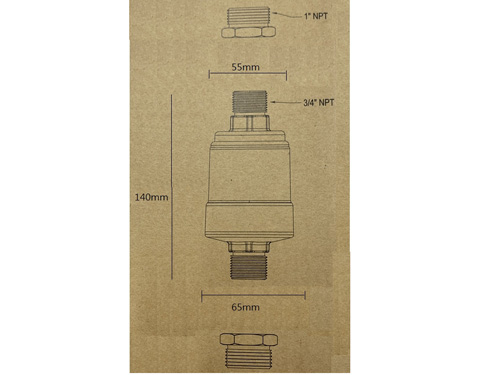

Length: 140mm
Weight: 350 grams

Cut-Down Pressure Valve Features

  • High quality pressure reducing valves being applicated for high pressure system to protect downstream components - water filters, drink dispensers, RO system.
  • Protect water filteration devices by limiting water pressure and reducing water hammer.
  • Different pressure ratio setting for options to suit different application.
  • Quick fitting connector for easy to install onto your application.
  • Protects water filter units by limiting water pressure. Ideal for R/O units, Fridges, Ice Makers and Coffee Makers. Resists water hammer.

In-Out Size: 3/4" NPT
