Plastic Cut-Down Pressure Valve(70PSI)
Water Filter Protection Valve (Plastic / 70 PSI)
C-291-22
| Model No. | C-291-22 |
| Description | Water Filter Protection Valve (Plastic / 70 PSI) 3/4"&1"NPT |

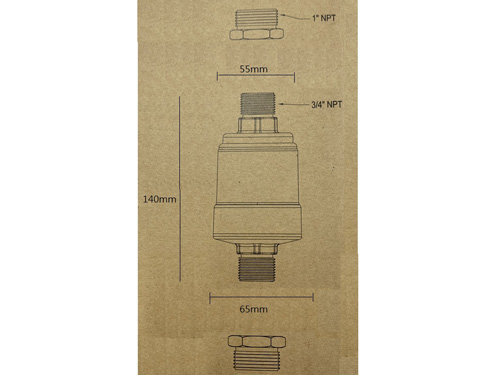

| Standard | In-Out Size: 3/4" NPT Flow Rate: 38L/min at 7PSI Flow Rate:52L/min at 14.2PSI Max Inlet Pressure: 1600kpa (230 PSI) Max Temp.: 40°C (104℉) Length: 140mm Weight: 350 grams |
Water Filter Protection Valve Features
- High quality pressure limiting valves being applicated for high pressure system to protect downstream components - water filters, drink dispensers, RO system.
- Protect water filteration devices by limiting water pressure and reducing water hammer.
- Different pressure ratio setting for options to suit different application.
- Quick fitting connector for easy to install onto your application.
- Protects water filter units by limiting water pressure. Ideal for R/O units, Fridges, Ice Makers and Coffee Makers. Resists water hammer.
In-Out Size: 3/4" NPT
