  • SINGLE STAGE UF WATER PURIFEIR
SINGLE STAGE UF WATER PURIFEIR
SINGLE STAGE UF WATER PURIFEIR
A-121-6

Model No. A-121-6

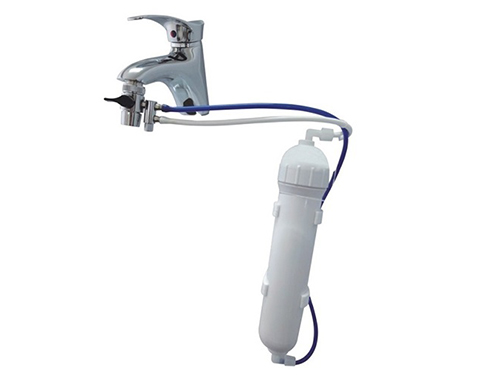

Description SINGLE STAGE UF WATER PURIFEIR (INCLUDING RETURN DIVERTER VALVE + TUBE)
Specification

Function and Characteristic:
1.Easy to install and use, no special tools needed.
2.Can filter big molecular substance, colloid, residual bacteria, algae, organic compound, etc. in the water.
3.Easy to install and use, no special tools needed.
4.Can filter big molecular substance, colloid, residual bacteria, algae, organic compound, etc. in the water.
5.Wash the filter for 3-5 minutes after installation.
6.When the filter is clogged or the flow rate becoming small, take it out and wash with clean water.
7.The filter is suitable to use for the water in the city, never use it to the water that is unknown and unsafe.

Data sheet:
Bore diameter : 0.01~0.1µm
Rupture diameter : about > 145psi
Ph level : 0-14
Temperature scale for use : 4~40°C
Suggested operation pressure : about ≦ 30psi

This filter set includes:
B-314-17 EXPOSED UF MEMBRANE(1/4"NPT)(L:245MM/D:48MM)
B-302-7 THE WHITE HOUSING FOR HOLLOW FIBER MEMBRANE(1/4" FNPT)(W)70MM(L)320MM
C-913-4 ME0404 MALE ELBOW EZ FITTING (O.D:1/4"; NPTF:1/4") X 2 PIECES
C-244-1 WHITE PLASTIC TUBE 1/4" X 1 meter
C-245-1 BLUE PLASTIC TUBE 1/4" X 1 meter
C-930-8 DOUBLE WAY SWITCH (1/4")
