  • EZ High Pressure Switches (Check Valve Included)(3/8")

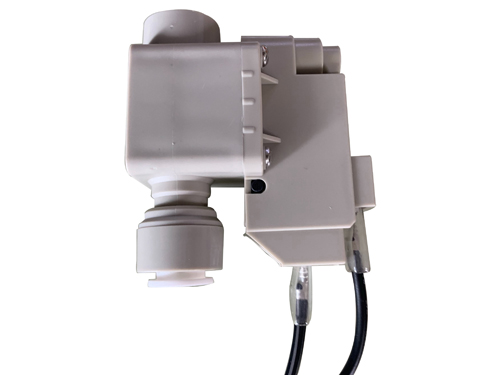

EZ High Pressure Switches (Check Valve Included)(3/8")
EZ High Pressure Switches (Check Valve Included)(3/8")
C-212-4
Model No. C-212-4
Description EZ High Pressure Switches (Check Valve Included)(3/8")
Standard Contact form: normal close
Contact current: 7A, 15A
Pipe interface: quick plug 3/8
Working life: >100,000 times
Applicable water temperature: 5~45°C
Terminal: Insert 4.8*0.8
Switch contact opening pressure: 38.43Psi±1.45
Switch contact conduction pressure: 12.33~19.58 Psi
Check valve function Reverse withstand voltage: >116.03Psi
Check valve function is leading the pressure drop: <2.18Mpa
