  • Quartz Sand Filter
Quartz Sand Filter
Quartz Sand
B-604

Manganese Greensand Filter, Iron Removal Filter

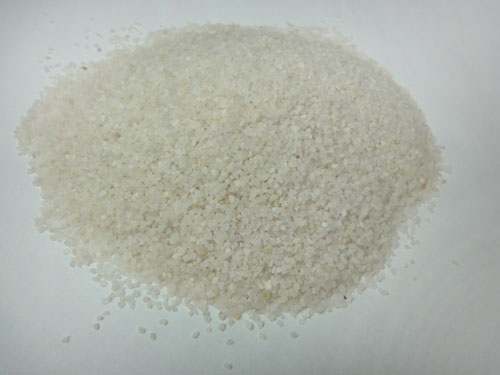

Quartz (quartz sand) is hard, wear-resisting and stable chemical properties silicate mineral which the main component is SiO2. Quartz (quartz sand) color is white or colorless translucent, hardness 7, no cleavage, conchoidal fracture, oil sheen and the relative density of 2.65. it have obvious anisotropy, do not dissolve in acid, slightly soluble in KOH solution, melting point is 1750 ℃. Quartz sand filtration system is using quartz sand as a filtration medium, at a certain pressure, if the higher turbidity of the water pass through quartz, it can retain remove suspended solids, organic matter, colloidal particles effectively. Water treatment plant will equip different quartz (different diameters), depending on water production.

Model No. B-604
Description Quartz Sand
Specification

Quartz sand is featured with high hardness, wear-resisting and stable chemical properties silicate mineral with main component is SiO2.
Quartz sand is in white color or colorless translucent, hardness 7, no cleavage, conchoidal fracture, oil sheen and the relative density of 2.65.
It has obvious anisotropy, do not dissolve in acid, slightly soluble in Potassium hydroxide solution (KOH), with high melting point of 1750°C.
Quartz sand filtration system is using quartz sand as a filtration medium, when high turbidity water passes through quartz sand,
it can retain remove suspended solids, organic matter, colloidal particles, microorganisms, chlorine, odor and some heavy metal ions effectively.

Effective particle diameter:1±0.1mm
Specific gravity : about 2.6kg/L
Bulk specific gravity : about 1.4kg/L
Uniformity coefficient :≤1.5
Mohs hardness : 7.0
SiCO2 content: > 95%
Ignition Loss: < 1%
Packing: 20L / package

Effective particle diameter:1±0.1mm
Specific gravity : about 2.6kg/L
Bulk specific gravity : about 1.4kg/L
Uniformity coefficient :≤1.5
Mohs hardness : 7.0
SiCO2 content: > 95%
Ignition Loss: < 1%
Packing: 20L / package
