  • Casing Style 5-Stage RO System (With Pump)
Casing Style 5-Stage RO System (With Pump)
HY-7034
Casing Style Inline K33 5-stage Filter RO (Standard)

taiwan manufacture water filter

Model No. A-107-5
Description HY-7034 Casing Type 5-Stage in-Line RO System
Specification

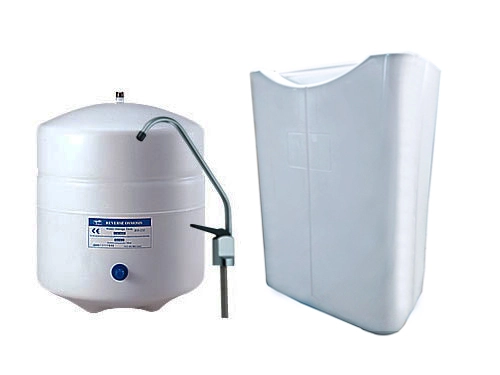

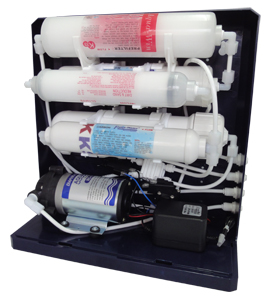

HY-7034 is different from traditional RO system, the accessories (like wires and tubes) are exposed, which is neither sanitary nor beautiful. Also it's easy to be bitten by rats, causing water short circuit issue or leakage problem. Our model is covered by an artistic case, which is not only easy to clean but good at protecting internal machine. HY-7034 includes high/low pressure switch, which can stop pump working automatically when water inlet is insufficient or tank is full. Standard model is 5-stage type, but we can add one more stage as you need, such as Alkaline filter, Mineral filter or infrared filter.

1st Stage --- In-Line K33 Disposable Sediment Filter
2nd Stage --- In-Line K33 Disposable Carbon Filter
3rd Stage --- In-Line K33 Disposable Carbon Filter
4th Stage --- King-Pro 50G RO membrane
5th Stage --- Post in-line Carbon
3.2G NSF Plastic Standard Storage tank

OPTIONAL:
80G Membrane / 100G membrane
With a transformer, available in 110Volt, 220Volt
Operation pressure: 50 -80 psi
Dimensions: Around (cm) 38 (L) x 21 (W) x 47(H) - RO System
  Around (cm) 28 (L) x 28 (W) x 38 (H) - Tank
Weight: Around 9 kgs - RO System
  Around 4 kgs - Tank
