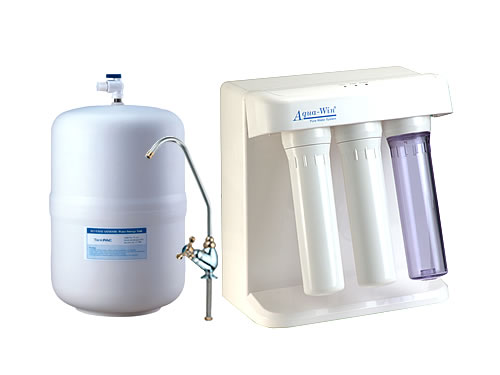

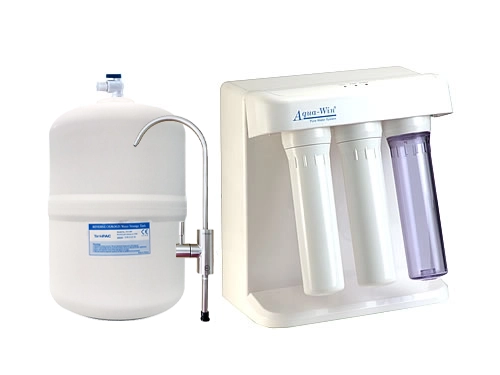

5 Stage Raised Up Type CE Standard RO System With Pump【AQUA-WIN】

HY-8035

Raised Up Insert Type 5-stage Filter RO (Standard)

Product Description
Product Specifications

ro water system

Model No.

A-225-4

Description

HY-8035 Raised Up 5-Stage Insert Type EZ Change RO System

Specification

*** LED display shows "FULL" & "PUMP" & "POWER".

***It can be raised up to height of 90° when replacing the inside cartridge filters.

***It is quick and easy for installation. It is quick and easy for installation

1st Stage --- Insert Type Sediment PP Filter

2nd Stage---Insert Type Block Carbon Filter

3rd Stage ---Insert Type Block Carbon Filter

4th Stage --- King-Pro 50G RO membrane

5th Stage --- Post in-line Carbon

2.2G NSF Plastic Standard Storage tank

OPTIONAL:

80G Membrane / 100G membrane

Candle Type Transparent Housing (Model: C-128-11) x 1

Candle Type White Housing (Model: C-128-12) x 2

Candle Type Hosing Reference Resources:

http://www.aquawin.com.tw/category/candle-type-housing.htm

B-314-26 Insert Type Sediment PP Filter x 1 ( the 1st stage )

B-314-28 or B-314-29 Insert Type Block Carbon Filter x 1 ( the 2nd stage )

B-314-28 or B-314-29 Insert Type Block Carbon Filter x 1 ( the 3nd stage )

Filter Cartridges Reference Resources:

http://www.aquawin.com.tw/category/insert-type-filter.htm

With a transformer, available in 110Volt, 220Volt
Operation pressure:	50 -80 psi
Dimensions:	Around (cm) 40 (L) x 26 (W) x 49(H) - RO System
	Around (cm) 25 (L) x 25 (W) x 36 (H) - Tank
Weight:	Around 9 kgs - RO System
	Around 3.5 kgs - Tank
