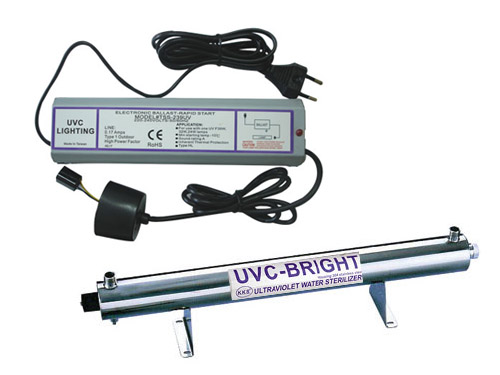

12GPM Ultraviolet Water Sterilizer (39W)(110V) CE Approval

UV Disinfection Systems

UV disinfection systems let the maximum amount of UV rays to sterilize the water and penetrate the protecting quartz sleeve. UV disinfection systems have a very stable construction, no harmful chemicals or by-products and comes with high quality quartz tube, high-performance lamps. These compact units require minimum space and simple installation. This compact design and economical treatment is for low flow and medium flow applications.

UV Water Sterilizer Assembly and Maintenance Instruction

UV Assembly & Maintenance ( 1G ~ 24G )

UVC Lighting

Model No. A-142 (For 110V)
Description 12G UV Water Sterilizer ( 110V )
1. Flow rate: Clean water: 12 Gpm/48 Lpm,
    DI, R.O.water:14.0Gpm/56 Lpm
2. Voltage: 100~120V,220~240V, 50/60 Hz
3. UV germicidal lamp: 39 W x 1 (Model: UVC-D842T5)
4. Ballast: C-166 ESS-A39T5UV 24W~39W x 1

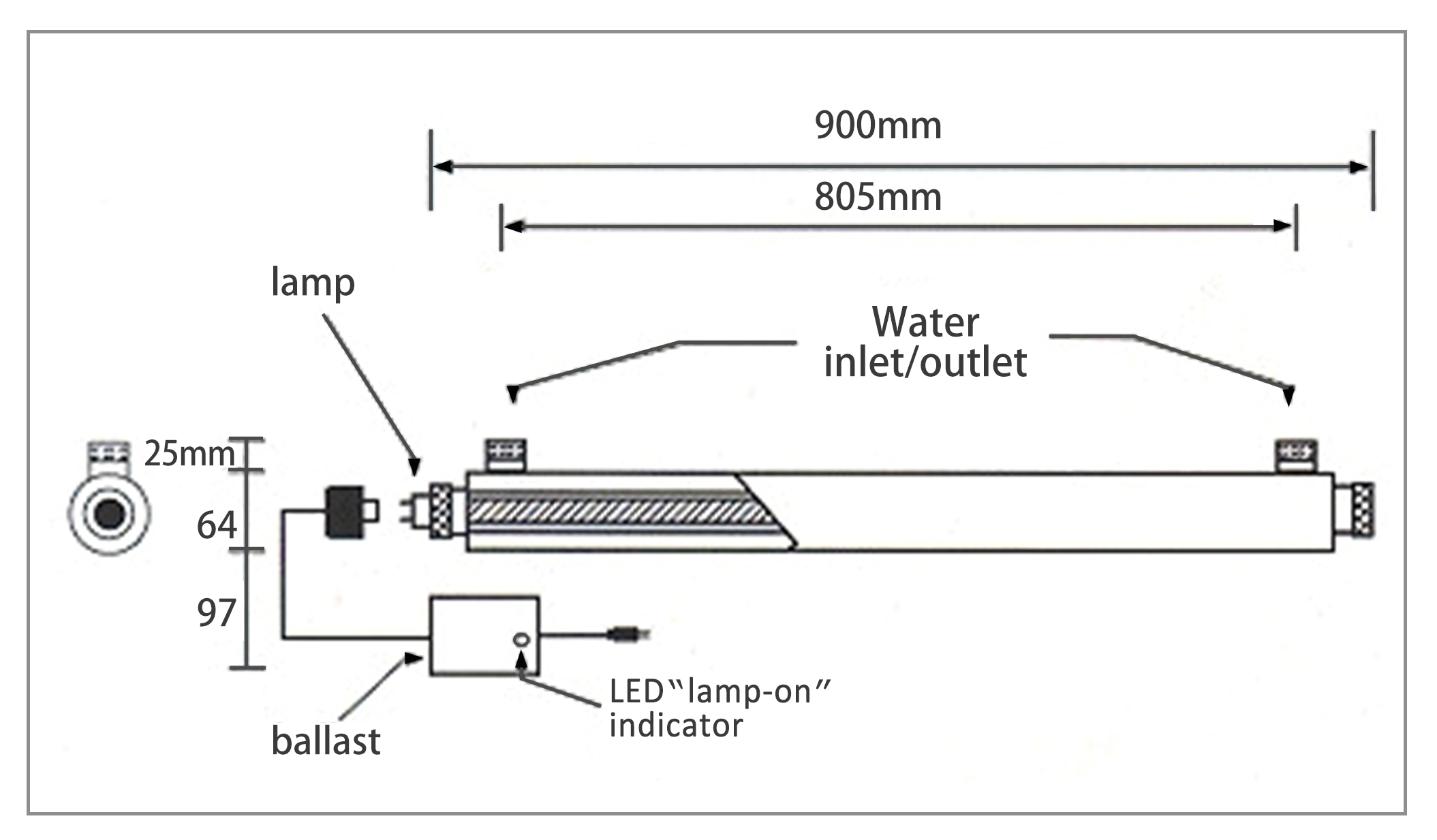

5. Dimension: 90 x 900mm
6. Inlet / outlet size: 3/4 inch NPT
7. Max. working pressure: 125 PSI
8. Chamber/housing: 304 stainless steel
9. Quartz sleeve: Model No. SQ230895
10. Lamp failure warning system: LED + Alarm
11. Lamp average life: 9,000hrs
12. UV sterilizer can effectively reduce Total Organic Compounds (TOCs)
13. UVC BRIGHT Disinfection / Ultraviolet

Ballast: 24W~39W
Inlet / outlet size: 3/4 inch NPT
