  • 12G UV Water Sterilizer ( 220V )
12G UV Water Sterilizer ( 220V )
12GPM Ultraviolet Water Sterilizer (39W)(220V) CE Approval
A-142-5

UV Assembly & Maintenance ( 1G ~ 24G )

12 GPM wholehouse ultraviolet

Model No. A-142-5 (For 220V)
Description 12G UV Water Sterilizer ( 220V )
Specification
1. Flow rate: Clean water: 12 Gpm/48 Lpm,
    DI, R.O.water:14.0Gpm/56 Lpm
2. Voltage: 100~120V,220~240V, 50/60 Hz
3. UV germicidal lamp: 39 W x 1 (Model: UVC-D842T5)
4. Ballast: C-166 ESS-A39T5UV 24W~39W x 1

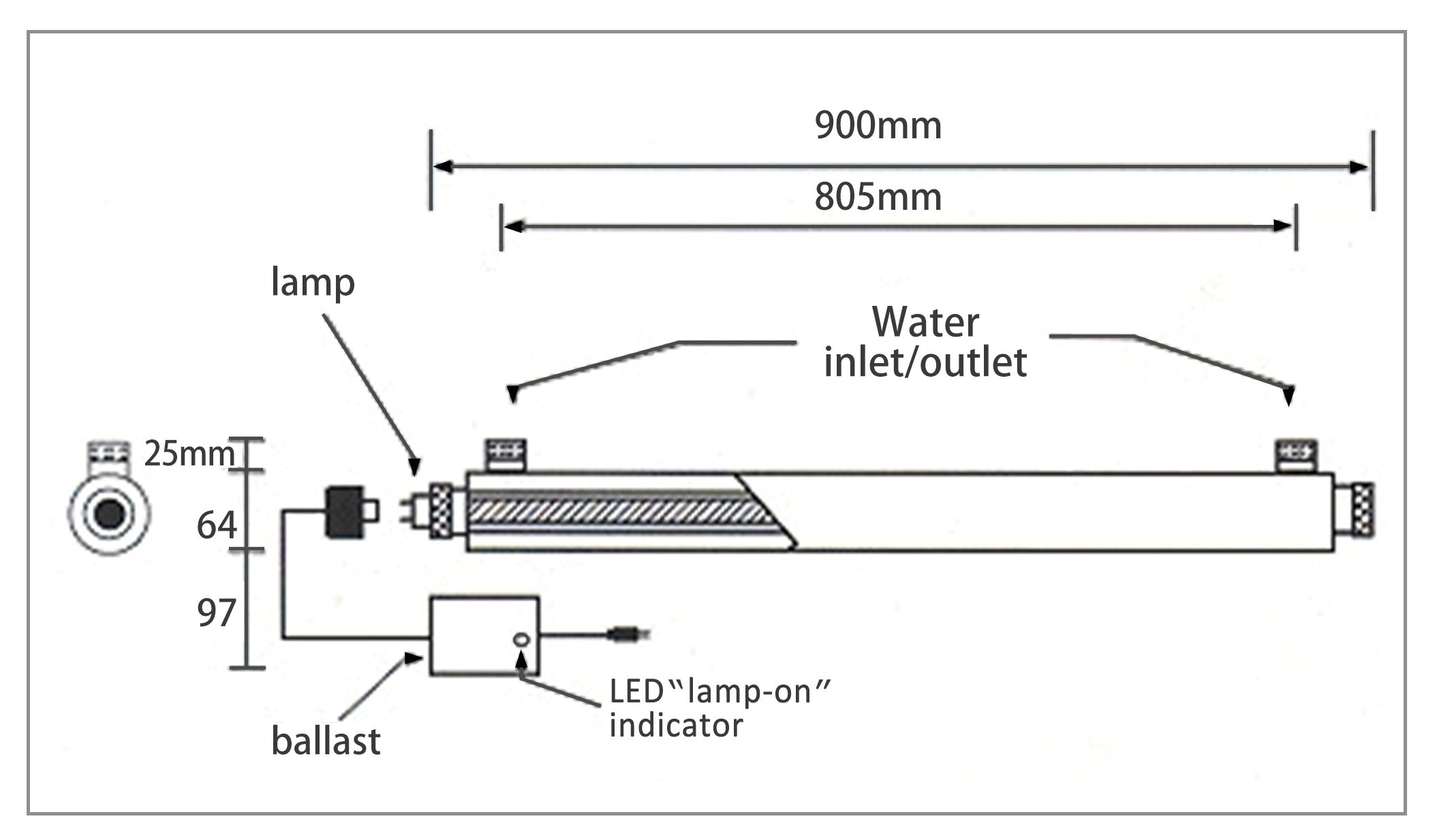

5. Dimension: 83 x 900mm
6. Inlet / outlet size: 3/4 inch NPT
7. Max. working pressure: 125 PSI
8. Chamber/housing: 304 stainless steel
9. Quartz sleeve: Model No. SQ230895
10. Lamp failure warning system: LED indicator + Alarm
11. Lamp average life: 9,000hrs
12. UV sterilizer can effectively reduce Total Organic Compounds (TOCs)
13. UVC BRIGHT Disinfection / Ultraviolet



About UV Disinfection Systems

UV disinfection systems let the maximum amount of UV rays to sterilize the water and penetrate the protecting quartz sleeve. UV disinfection systems have a very stable construction, no harmful chemicals or by-products and comes with high quality quartz tube, high-performance lamps. These compact units require minimum space and simple installation. This compact design and economical treatment is for low flow and medium flow applications.

Ballast: 24W~39W
Inlet / outlet size: 3/4 inch NPT
