  • 2G UV Water Sterilizer (220V), 1/4 inch NPT CE Approval
2G UV Water Sterilizer (220V), 1/4 inch NPT CE Approval
2GPM Ultraviolet Water Sterilizer (14W)(220V) CE Approval (Singal Top 4 Pins)
A-140-6

UV Assembly & Maintenance ( 1G ~ 24G )

UV water treatment system

Model No. A-140-6 (For 220V)

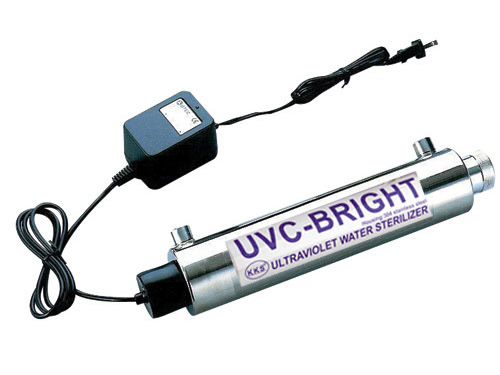

Description 2G UV Water Sterilizer ( 220V )
Specification
1. Flow rate: Clean water: 1.5 Gpm/6.0Lpm,
    DI, R.O.water:2.0Gpm/8.0Lpm
2. Voltage: 100~120V,220~240V, 50/60 Hz
3. UV germicidal lamp: 14W x 1 (Model:UVC-D287T5)
4. Ballast: C-161-4 BT-014B 14W x 1
5. Dimension: 64 x 340mm
6. Inlet / outlet size: 1/4 inch NPT
7. Max. working pressure: 125 PSI
8. Chamber/housing: 304 stainless steel
9. Quartz sleeve: Model No. SQ230330
10. Lamp failure warning system: LED indicator + Alarm
11. Lamp average life: 9,000hrs
12. UV sterilizer can effectively reduce Total Organic Compounds (TOCs)
13. UVC BRIGHT Disinfection / Ultraviolet



About UV Disinfection Systems

UV disinfection systems let the maximum amount of UV rays to sterilize the water and penetrate the protecting quartz sleeve. UV disinfection systems have a very stable construction, no harmful chemicals or by-products and comes with high quality quartz tube, high-performance lamps. These compact units require minimum space and simple installation. This compact design and economical treatment is for low flow and medium flow applications.

Related UVC Lighting Products

Ballast: 14W
Inlet / outlet size: 1/4 inch NPT
