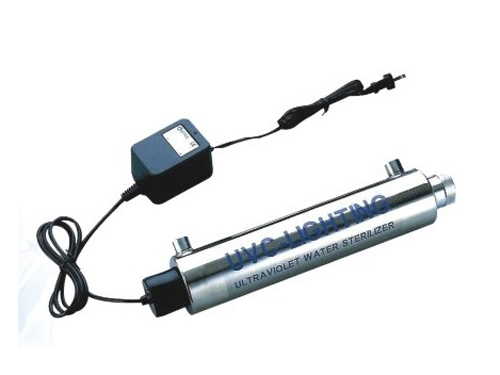

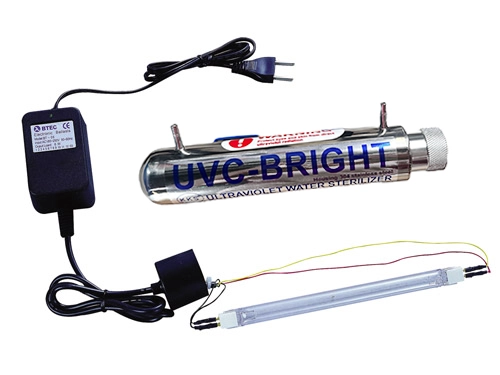

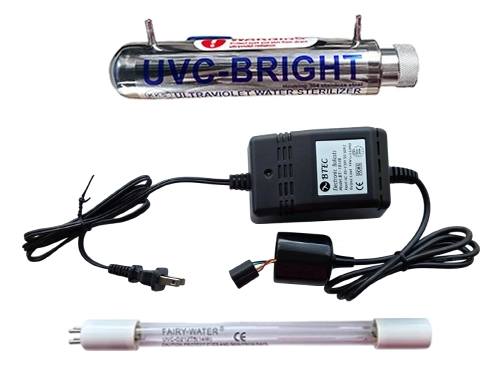

1GPM Ultraviolet Water Sterilizer (14W)(220V) CE Approval (Singal TOP 4 PINS)

UV Assembly & Maintenance ( 1G ~ 24G )

Model No. A-140-8 (For 220V)
Description 1GPM Ultraviolet Water Sterilizer (14W)(220V) CE Approval (Singal TOP 4 PINS)
1. Flow rate: Clean water: 0.5 Gpm/2.0Lpm,
    DI, R.O.water:1.0Gpm/4.0Lpm
2. Voltage: 100~120V,220~240V, 50/60 Hz
3. UV germicidal lamp: 14W x 1 (Model:UVC-D212T5)
4. Ballast: C-161-4 BT-014B 14W x 1
5. Dimension: 50.5 x 260mm
6. Inlet / outlet size: 1/4 inch NPT
7. Max. working pressure: 85 PSI
8. Chamber/housing: 304 stainless steel
9. Quartz sleeve: Model No. SQ230238S
10. Lamp failure warning system: LED indicator
11. Lamp average life: 9,000hrs
12. UV sterilizer can effectively reduce Total Organic Compounds (TOCs)
13. UVC BRIGHT Disinfection / Ultraviolet


About UV Water Disinfection Filter Systems

UV disinfection systems let the maximum amount of UV rays to sterilize the water and penetrate the protecting quartz sleeve. UV disinfection systems have a very stable construction, no harmful chemicals or by-products and comes with high quality quartz tube, high-performance lamps. These compact units require minimum space and simple installation. This compact design and economical treatment is for low flow and medium flow applications.
